Manhole Rehabilitation

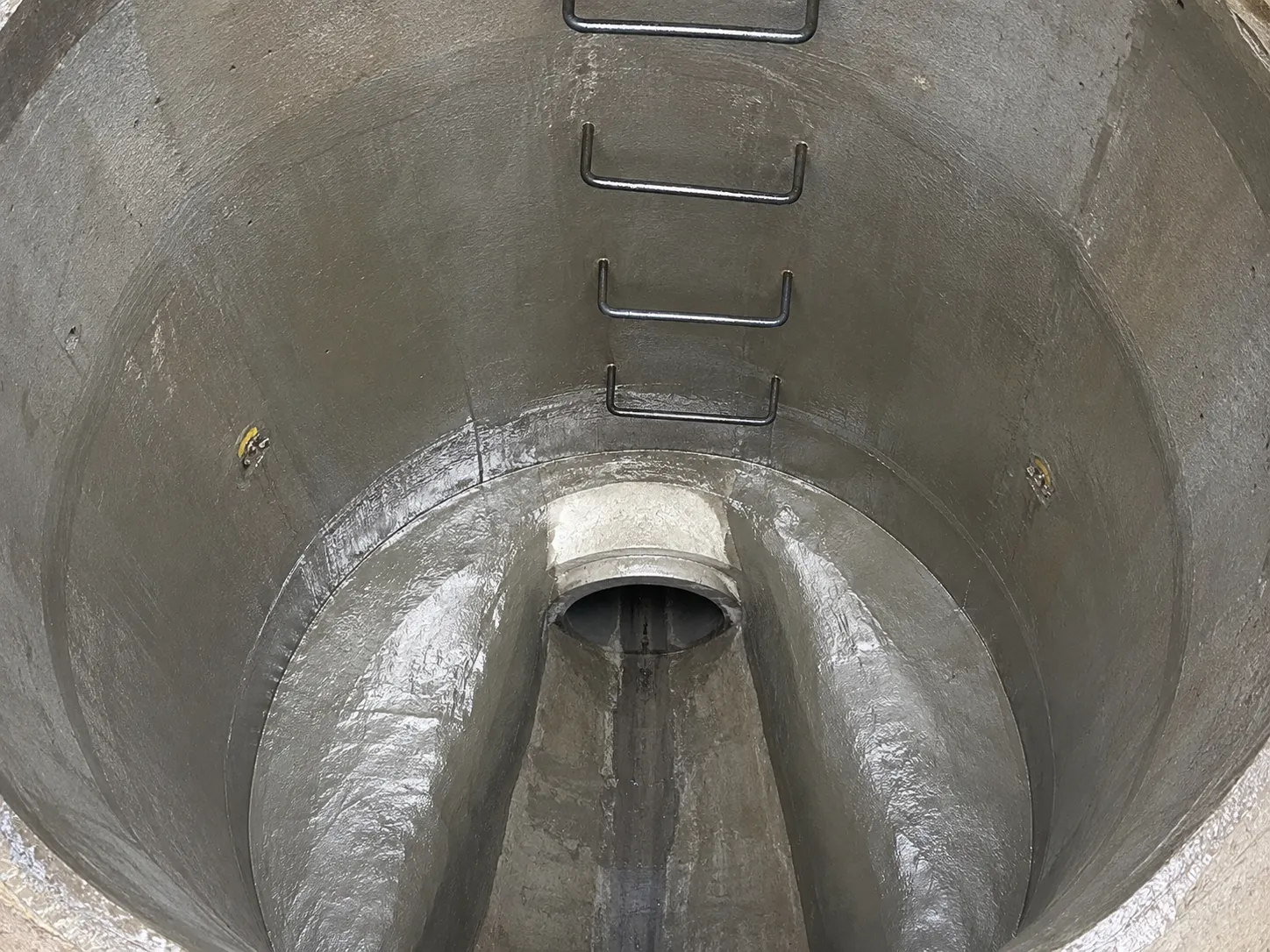

Rehabilitation can stop groundwater infiltration, rebuild missing mortar and concrete, restore benching and channels, protect surfaces from sewer corrosion, seal pipe penetrations, renew ladder systems, and correct selected frame or chimney defects. Structural movement or failed surrounding soil may require partial reconstruction or full replacement instead.

Chemical grout targets active infiltration paths. A protective bonded coating controls corrosion on a sound structure. A semi-structural or structural system adds designed wall capacity. Harrowgate uses the engineer's objective, field dimensions, substrate condition, groundwater head, sewer chemistry, geometry, and municipal specification to define the correct system.

A bonded lining can only adhere to sound, clean, properly profiled substrate. Grease, laitance, loose mortar, corroded concrete, old coating, and visible moisture create weak planes or pinholes. Harrowgate removes unsound material, repairs leaks, develops the specified profile, confirms dryness, and documents the prepared surface before application.

Active infiltration must be controlled before the final lining is applied. Water can dilute repair material, prevent adhesion, and create pressure behind the finished system. We isolate flow, trace leakage, grout or plug the entry path, rebuild the substrate, and verify stable surface conditions before the lining stage begins.

Usually the work area needs isolation from live flow. The method may use upstream plugging, controlled diversion, or bypass pumping based on flow, surcharge risk, connected services, weather, and cure time. Harrowgate sizes and monitors the arrangement so cleaning, repair, lining, inspection, and cure occur under controlled conditions.

Thickness is checked during application using the approved wet-film, depth-pin, gauge, or consumption-control method and confirmed at required locations. The crew pays particular attention behind former steps, around penetrations, at offsets, and through transitions. Thin areas are corrected within the approved recoat window and recorded for acceptance.

A sewer manhole is treated as a confined space. Ontario requirements call for a written program, hazard assessment, entry plan, permit, atmospheric testing, isolation, ventilation where required, an attendant, communications, suitable access, and on-site rescue procedures. Traffic and unauthorized entry controls are also established at surface.

Provide structure locations, type, diameter, depth, inspection records, photographs or scans, pipe sizes, flow data, groundwater observations, defect schedule, sewer chemistry where relevant, lining performance requirements, bypass criteria, traffic constraints, testing requirements, and restoration details. A field review resolves uncertain substrate and access conditions.
