Built to spec
Built to your engineered drawings, survey, and the real site conditions, not a one-size-fits-all approach forced to fit.
Commercial & Heavy-Civil Construction

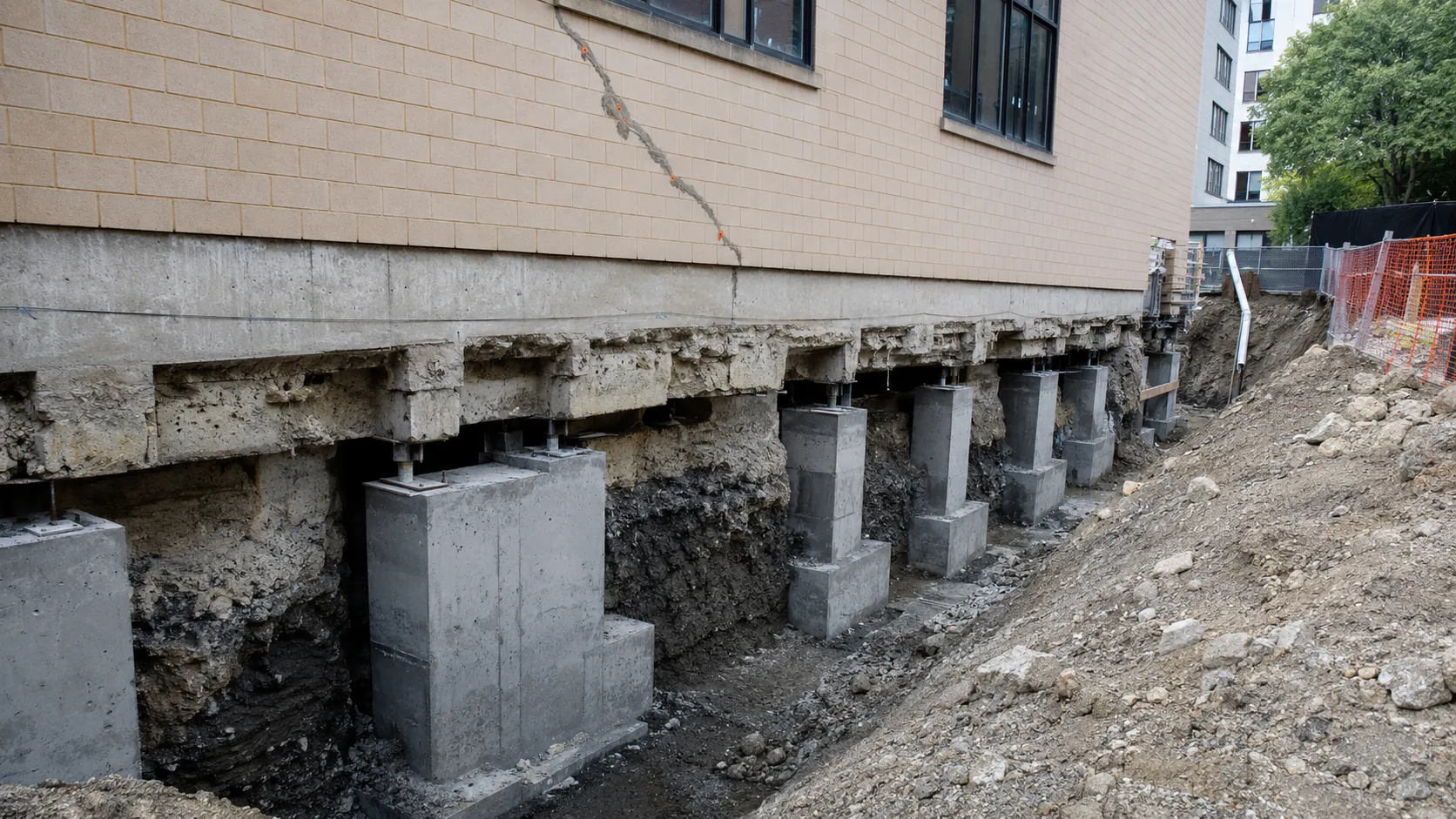

Foundation Underpinning
Harrowgate Group directly completes foundation underpinning for developers, general contractors, engineers, and commercial property owners across Toronto, the GTA, and Ontario, coordinating investigation, engineered support, construction, testing, monitoring, and load transfer.
- Licensed, Insured & WSIB-Covered
- 20 Years in Business
Get a Quote
Tell us what you need and we’ll get you a quote. Licensed, insured & WSIB-covered · Free, no-obligation quote & on-site assessment.
Get a Quote
Licensed, insured & WSIB-covered · Free, no-obligation quote & on-site assessment.
20 Years in Business
Licensed, Insured & WSIB-Covered Completed to code & Ontario requirements Completed on site and built to the drawings Performed & installed on site across Ontario
Why Harrowgate Group
What to expect from foundation underpinning
Made to last
Durable materials and methods chosen for the load, traffic, and environment on site.
Quote-ready
Send specs, drawings, or photos and get a free, no-obligation site visit and estimate with no guesswork.
Code-conscious
Installation and site work completed in accordance with Ontario requirements.
Our Process
How we plan and deliver foundation underpinning

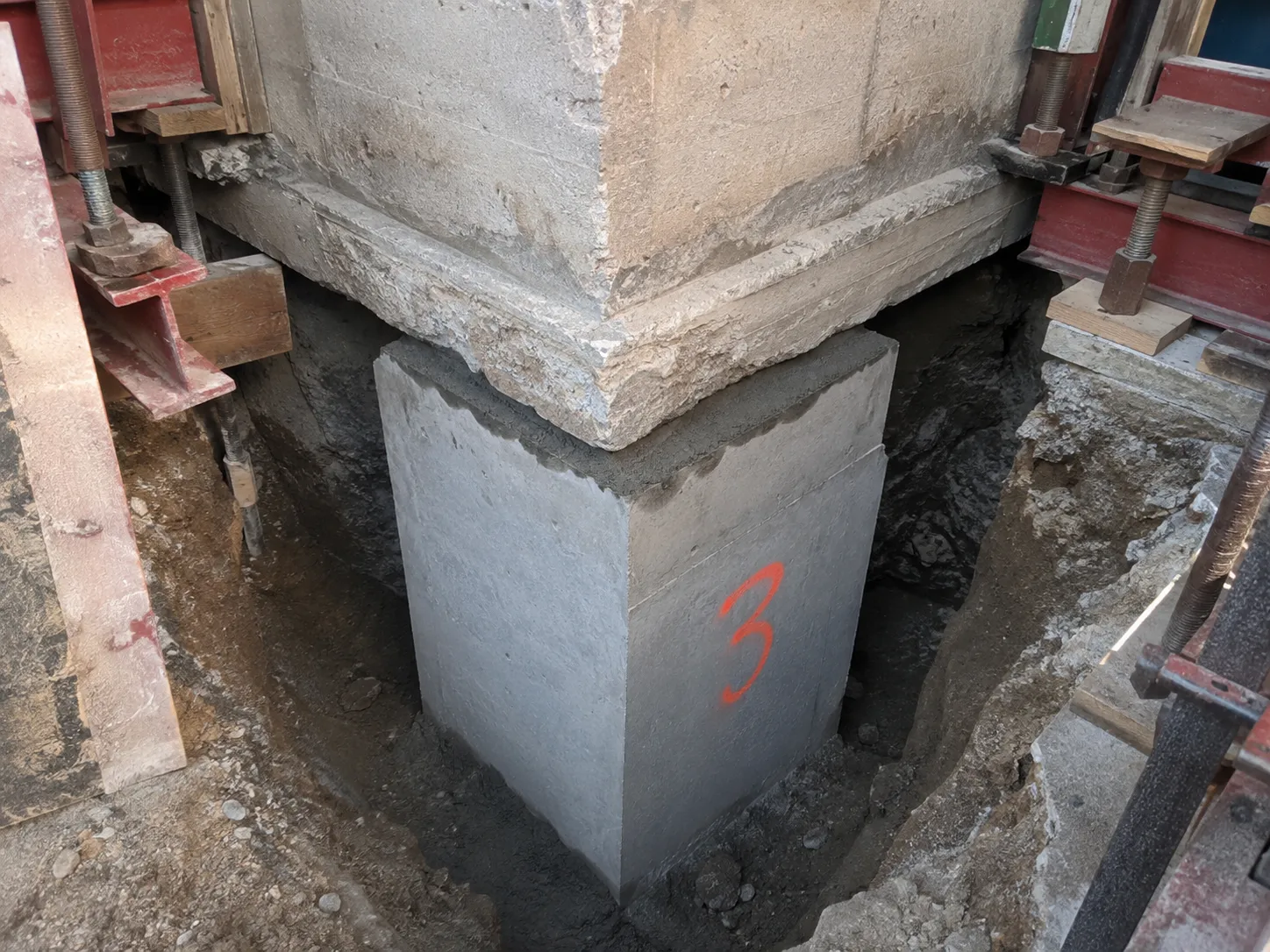

Foundation underpinning transfers an existing wall, column, or equipment foundation onto deeper or stronger support when the current bearing level is inadequate or construction will remove its lateral confinement. Harrowgate builds engineered underpinning throughout Toronto and the GTA using concrete pins, reinforced beams, micropiles, helical piles, brackets, needles, and controlled grouting.
- 01 Send your inquiry, a few photos or a description of the site.
- 02 We come out, assess the site, take measurements, and confirm the scope.
- 03 We complete the foundation underpinning on site, to the load and finish the job needs.
- 04 We install it, finish to grade, and clean up, one accountable crew, start to finish.
Local Context
A closer look at foundation underpinning
Scope
Understanding foundation underpinning

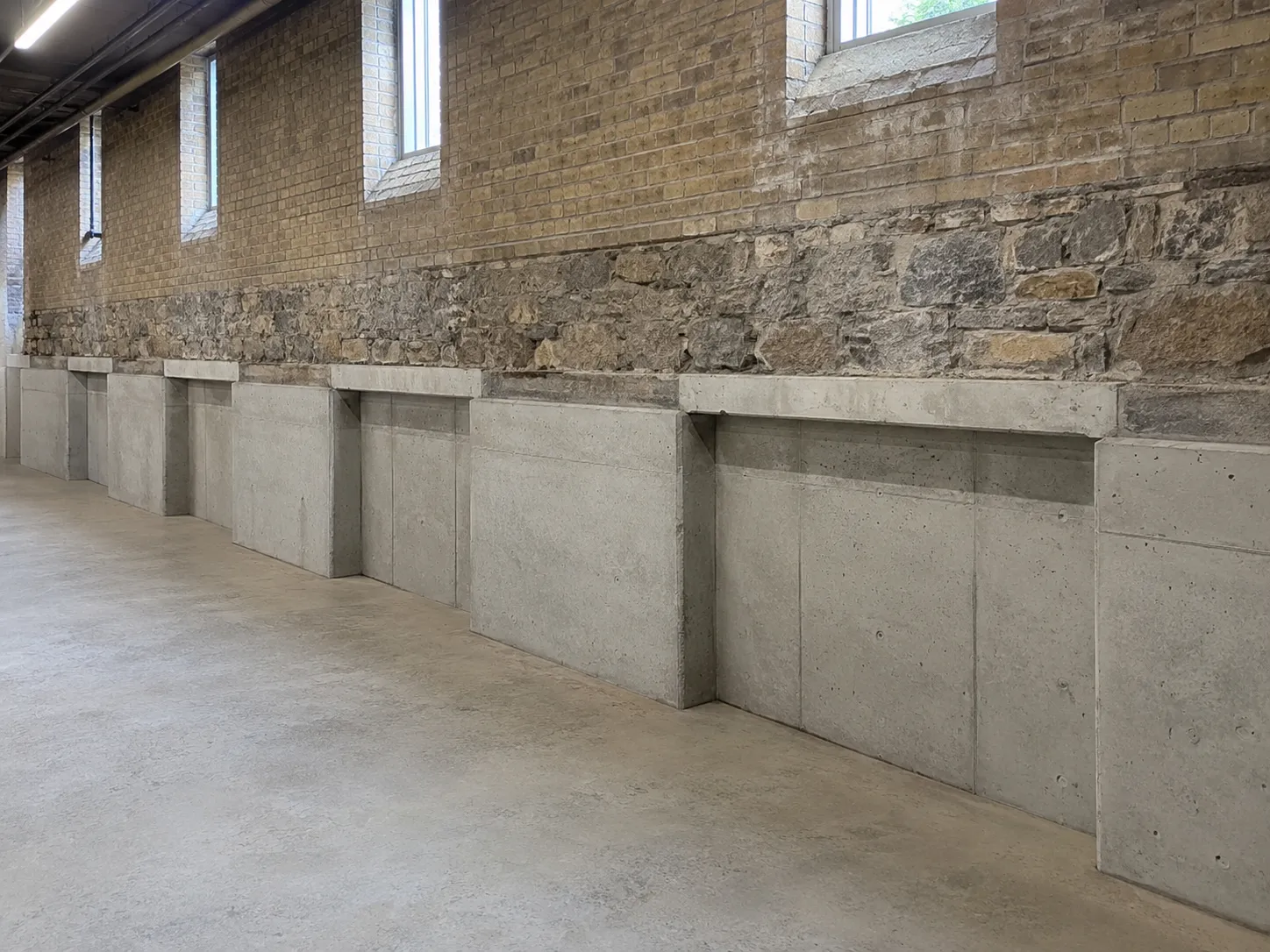

How we deliver foundation underpinning
Underpinning succeeds when the temporary load path is defined before soil or concrete is removed. We establish survey control, verify services and existing geometry, build only the authorised stage, keep excavations stable and reasonably free of water, inspect concealed work, and transfer load only after the new support has reached the engineer's stated acceptance criteria.
We establish elevation and movement baselines, expose selected investigation locations, and confirm the actual footing width, thickness, material, reinforcement, load path, and soil. The approved sequence divides the foundation into numbered elements so unsupported lengths never combine. Each stage is excavated and shored, the bearing surface is inspected, and the new support is constructed.
Piled schemes use verified pile installation and a reinforced cap or grade beam to collect the existing load. Direct-bearing schemes use formed or earth-cast concrete and a controlled final load-transfer joint. Jacks are used only where the design calls for measured preload or elevation correction.
Every active element has an identity, status, and release condition. Daily records show what was exposed, the soil or founding response, temporary support, water, dimensions, materials, inspections, concrete or grout placement, strength evidence, pile or jack data where applicable, and movement readings. An unexpected condition is stabilized and reviewed before the opening is enlarged or the next stage begins.

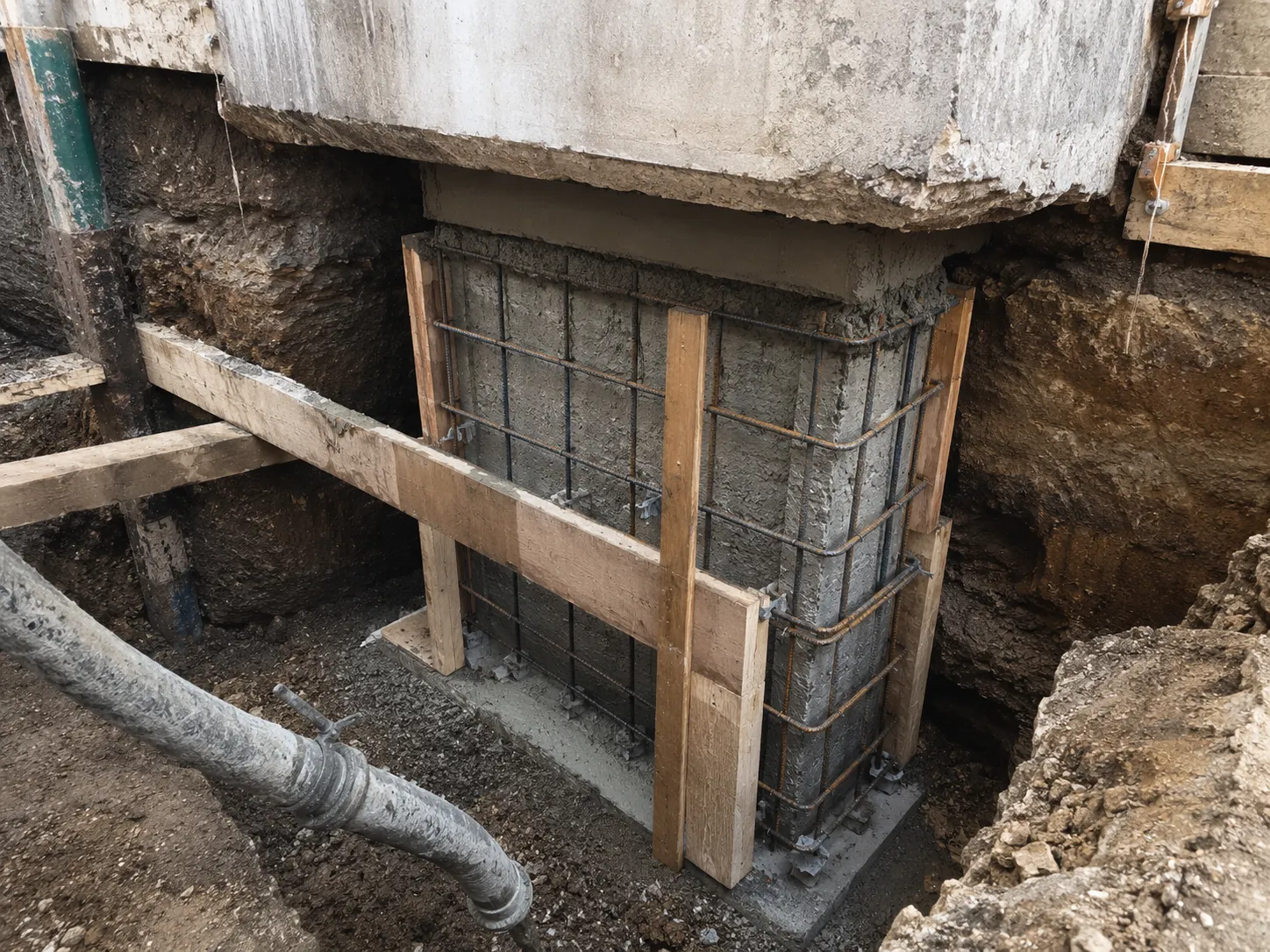

Materials, specs, and Ontario standards
Every dimension and capacity comes from the sealed structural and geotechnical design, not a field rule of thumb. We control founding elevation, open length, pile or bearing capacity, reinforcement, steel, concrete and grout, load-transfer contact, sequence, testing, inspection, and movement. Applicable OBC provisions, Ontario construction requirements, CSA standards, and project-specific OPSS clauses govern the work.
Design values include existing dead and live reactions, temporary redistribution, soil bearing resistance, settlement, pile compression and lateral capacity, bracket eccentricity, beam shear and flexure, concrete strength, reinforcement development, grout behaviour, and construction sequence. The engineer specifies proof testing or verification testing for piles and any jacking criteria.
OBC, the sealed structural and geotechnical design, CSA requirements for concrete and steel, and Ontario excavation rules govern. We verify founding elevation, reinforcement, pile records, torque or drilling parameters where specified, grout and concrete batches, test results, and final survey.
Ontario construction rules require services to be located and marked before excavation, hazardous services to be controlled, adjacent structures to receive the written precautions specified by an engineer, and worker excavations to be reasonably free of water. Soil, surcharge, safe access, edge protection, and support systems are managed as part of the underpinning operation, not left outside the foundation detail.

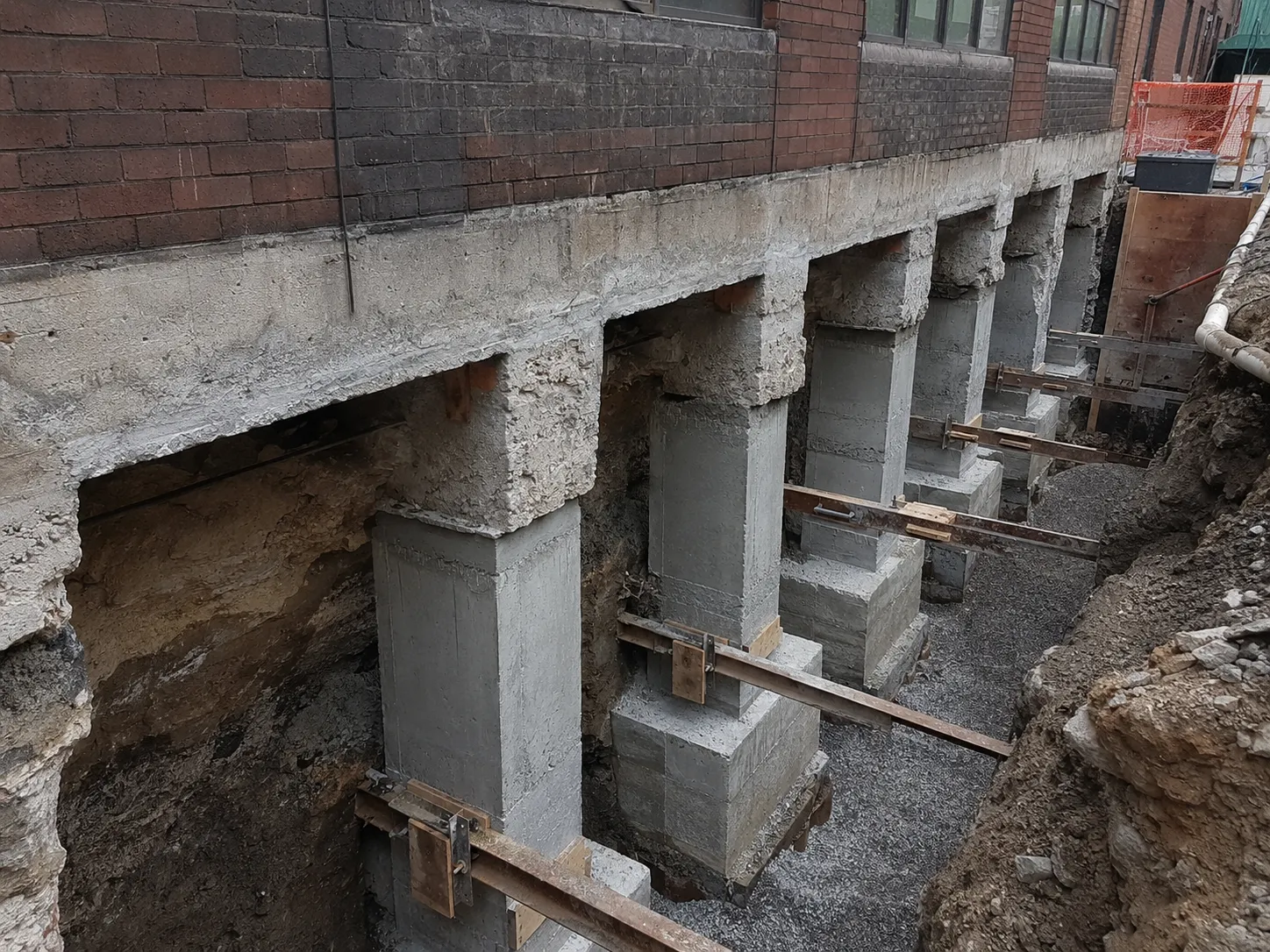

What goes wrong, and how we prevent it
The failures buyers worry about are settlement, cracking, loss of bearing, unstable excavations, damaged services, incomplete contact, failed pile or concrete tests, water entry, and schedule delay. These problems usually begin at a concealed interface or an out-of-sequence opening. We prevent them with early exposure, numbered stages, engineered temporary support, documented inspections, strength holds, measured transfer, and monitoring.
Underpinning can settle when it bears on disturbed soil, bridges over a soft pocket, uses incomplete grout contact, or transfers load through an eccentric bracket that was not installed as detailed. It can also crack the supported structure when too much footing is exposed, a pin is loaded early, or jacking is uncontrolled. We prevent these outcomes with small sequenced openings, inspection of bearing and existing material, robust form closure, measured placement, strength holds, controlled preload, and movement monitoring tied to stop-work levels.
Weather, pumping, vibration, building use, material storage, and work by other crews can change the temporary condition. We review those influences each shift. If a movement level, test criterion, bearing requirement, or inspection hold is not satisfied, the affected work stops, remains supported, and is referred to the engineer before load or excavation progresses.
Have drawings for foundation underpinning? Send them over and we will scope it.
FAQ
Foundation Underpinning FAQ
How is foundation underpinning sequenced?
We sequence foundation underpinning from the sealed drawings and the existing load path. We establish elevation and movement baselines, expose selected investigation locations, and confirm the actual footing width, thickness, material, reinforcement, load path, and soil. Each stage remains within its stated opening limit, receives the specified support and inspection, and reaches its concrete, grout, pile, connection, or transfer acceptance.
Does underpinning always require a building permit and engineered drawings?
Commercial underpinning is structural work and is planned from sealed engineering documents. Permit and submission requirements depend on the municipality and full project scope, but excavation, foundation changes, temporary support, and load transfer must be coordinated with applicable OBC requirements and approved documents. We confirm required inspections and hold points before opening the first stage.
How do you determine which underpinning method to use?
The selection follows existing loads and condition, footing geometry, soil and groundwater, depth to competent support, access, headroom, vibration limits, neighbouring assets, property rights, and the proposed permanent work. Shallow competent bearing may suit concrete pins. Deep weak soils or concentrated reactions may require piles, beams, brackets, needles, or ground treatment.
Can the building remain operational during underpinning?
Often it can, when the engineer's temporary load path and the project phasing support continued use. We isolate work zones, maintain required exits and services, control dust, noise, vibration, and deliveries, and schedule disruptive transfers around operations. Feasibility depends on structural condition, access, sensitive equipment, utility interruptions, and the response plan for unexpected movement.
How do you monitor movement during the work?
We establish baseline elevations and condition observations before disturbance, then read the specified survey points, crack gauges, tilt points, or other instruments at stage and time intervals. Results are compared with engineer-defined review and action levels. A rapid change, unusual trend, or visible distress triggers confirmation, stabilization, notification, and a hold on affected work.
What happens if the existing footing differs from the drawings?
We keep the exposed area stable, document dimensions and material condition, and notify the engineer before extending demolition or excavation. Footing depth, width, reinforcement, masonry quality, hidden grade beams, services, and previous alterations can change the load-transfer detail. The affected stage continues only after the design is confirmed or revised for the observed condition.
What are the main schedule and cost drivers?
The main drivers are investigation findings, number and depth of stages, soil and groundwater, working headroom, hand excavation, temporary support, pile depth, drilling obstructions, structural steel, reinforcing, concrete and grout, load testing, monitoring, inspection timing, spoil routes, occupied operations, and reinstatement. A complete sequence and early exposures reduce uncertainty before full production begins.
What closeout records are available?
The project package can include investigation records, pit or pile logs, bearing approvals, reinforcement inspections, concrete tickets and test results, grout records, steel and connection inspections where specified, pile tests, jacking and preload readings, monitoring plots, field changes, photographs, and as-built locations. The final list follows the project specification and engineer's inspection plan.
Still have a question about foundation underpinning? Ask our team directly.
Explore
Related Harrowgate services
Micropiles, Micropiles for deep support and restricted access
Underpinning, Underpinning for occupied commercial properties
Support beside deep excavation, Support beside deep excavation
Movement monitoring and trigger-level reporting, Movement monitoring and trigger-level reporting
Our Work
View Our Projects See real projects across Toronto & Ontario
Commercial and heavy-civil construction delivered for developers, contractors, property managers, and municipalities.
Get a quote for foundation underpinning
Send drawings, a site plan, or a description of the scope. Harrowgate Group is licensed, insured, and WSIB-covered.
Licensed, Insured & WSIB-Covered, work managed and documented on every job
Send your project details
Tell us what you need and we’ll get you a quote. Licensed, insured & WSIB-covered · Free, no-obligation quote & on-site assessment.
Foundation Underpinning Across the GTA
View all service areas →Harrowgate Group provides foundation underpinning, delivered and installed with quote-ready support across Toronto and surrounding Ontario communities.
